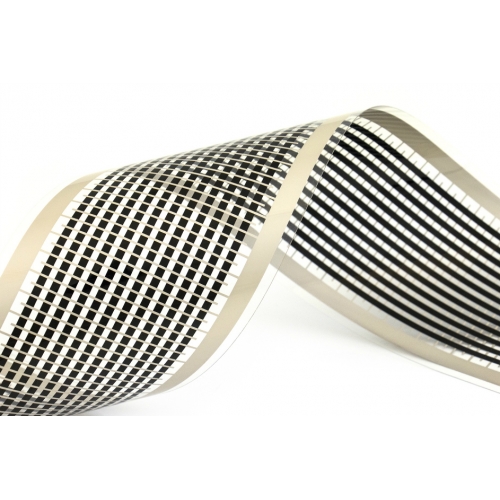

PRODUCT DESCRIPTION LOCTITE ECI 8001 E&C provides the following product characteristics: Technology Thermoplastic Appearance Black paste Product Benefits ● Screen printable ● Flexible ● Printable on most common substrates ● Rapid heating with fast, defined cut-off temperatures, no external control devices needed Filler Type Carbon Operating Temperature 65oC Cure Hot air drying or infrared Application Conductive Ink Typical Assembly Applications Self regulating heating elements Key Substrates PET substrates LOCTITE ECI 8001 E&C is a Positive Temperature Coefficient (PTC) screen printable ink designed for applications where self regulating heaters are required. This material is formulated to rapidly heat to a specific threshold temperature and then maintain constant temperature for the device. TYPICAL PROPERTIES OF UNCURED MATERIAL Solids Content (TGA, 1hour @ 150°C), % 50 Density, g/ml 1.0 Viscosity, Plate & Plate, mPa·s (cP): Plate 20mm @ Shear rate 15 s -1 6,500 Thixotropic Index (1.5/15 rpm) 6.0 Theoretical coverage, m2/kg: @ 10 μm coating thickness 48 Flash Point - See SDS TYPICAL CURING PERFORMANCE Recommended Drying Cycle 10 minutes @ 120°C LOCTITE ECI 8001 E&C can be dried using forced air or infrared systems. Higher temperatures for longer time exposure will improve the performance. Care should be taken with infrared. Too much energy can destroy the coating. Design drying rates for the maximum the substrate and production speeds can tolerate. The above drying profile is a guideline recommendation. Conditions (time and temperature) may vary based on customers' experience and their application requirements, as well as customer drying equipment, oven loading and actual oven temperatures. TYPICAL PROPERTIES OF CURED MATERIAL Electrical Properties Electrical Resistance per 25 μm, kOhm/sq 1.7 Resistance vs. Temperature Below is the Resistance versus Temperature curve of dried PTC-ink, measured on a test design. TYPICAL PERFORMANCE OF CURED MATERIAL Miscellaneous Adhesion Strength 5B PET/PTC ratio >7 GENERAL INFORMATION For safe handling information on this product, consult the Safety Data Sheet, (SDS). STORAGE: Store product in the unopened container in a dry location. Storage information may be indicated on the product container labeling. Optimal Storage: 8 to 28°C. Storage below 8°C or above 28°C can adversely affect product properties. Material removed from containers may be contaminated during use. Do not return product to the original container. Henkel Corporation cannot assume responsibility for product which has been contaminated or stored under conditions other than those previously indicated. If additional information is required, please contact your local Technical Service Center or Customer Service Representative.
