PTC 正溫度係數加熱器堆疊 頂蓋層 添加了 TPU 覆蓋膜以提供額外保護。封面可以設計為清晰的或包含定制的圖形，如徽標。 電阻碳元素 使用特種電阻碳墨水作為加熱元件。 導電銀走線和母線系統 銀走線和匯流條系統用於向加熱器的其餘部分輸送電力和熱量。 PET基材 PET 是 PTC 加熱器結構的最佳基材。它允許一些靈活性，但不能拉伸。 背面也可以有一個熱熔膠，以便於應用到織物服裝上。 固定電阻加熱器堆疊 頂蓋層 添加了 TPU 覆蓋膜以提供額外保護。封面可以設計為清晰的或包含定制的圖形，如徽標。 導電銀走線和母線系統 銀走線和匯流條系統用於向加熱器的其餘部分輸送電力和熱量。 電阻元件 使用特種電阻碳、銀或混合墨水作為加熱元件。 基礎TPU薄膜 TPU 最常見的原因是它具有拉伸和貼合用戶的能力。 背面也可以有一個熱熔膠，以便於應用到織物服裝上。 Kapton 加熱器堆疊 導電銀走線和母線系統 銀走線和匯流條系統用於向加熱器的其餘部分輸送電力和熱量。 基 Kapton RS 薄膜 Kapton RS 薄膜在通電時會被加熱。

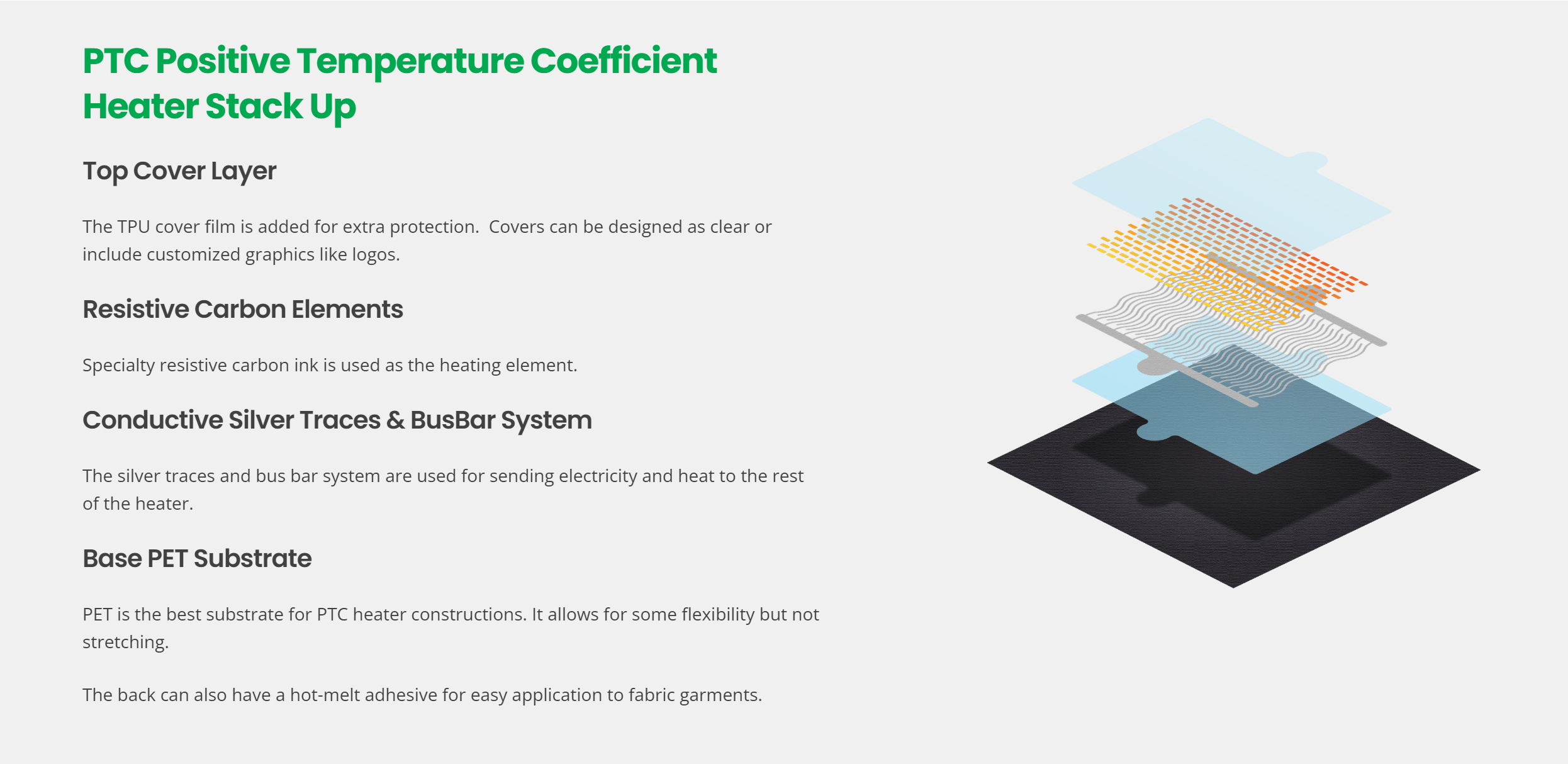

PTC Positive Temperature Coefficient Heater Stack Up

Top Cover Layer

The TPU cover film is added for extra protection.  Covers can be designed as clear or include customized graphics like logos.

Resistive Carbon Elements

Specialty resistive carbon ink is used as the heating element.

Conductive Silver Traces & BusBar System

The silver traces and bus bar system are used for sending electricity and heat to the rest of the heater.

Base PET Substrate

PET is the best substrate for PTC heater constructions. It allows for some flexibility but not stretching.

The back can also have a hot-melt adhesive for easy application to fabric garments.

Fixed-Resistance Heater Stack Up

Top Cover Layer

The TPU cover film is added for extra protection.  Covers can be designed as clear or include customized graphics like logos.

Conductive Silver Traces & BusBar System

The silver traces and bus bar system are used for sending electricity and heat to the rest of the heater.

Resistive Elements

Specialty resistive carbon, silver, or blended ink is used as the heating element.

Base TPU Film

TPU is most common for its ability to stretch and conform to its user.

The back can also have a hot-melt adhesive for easy application to fabric garments.

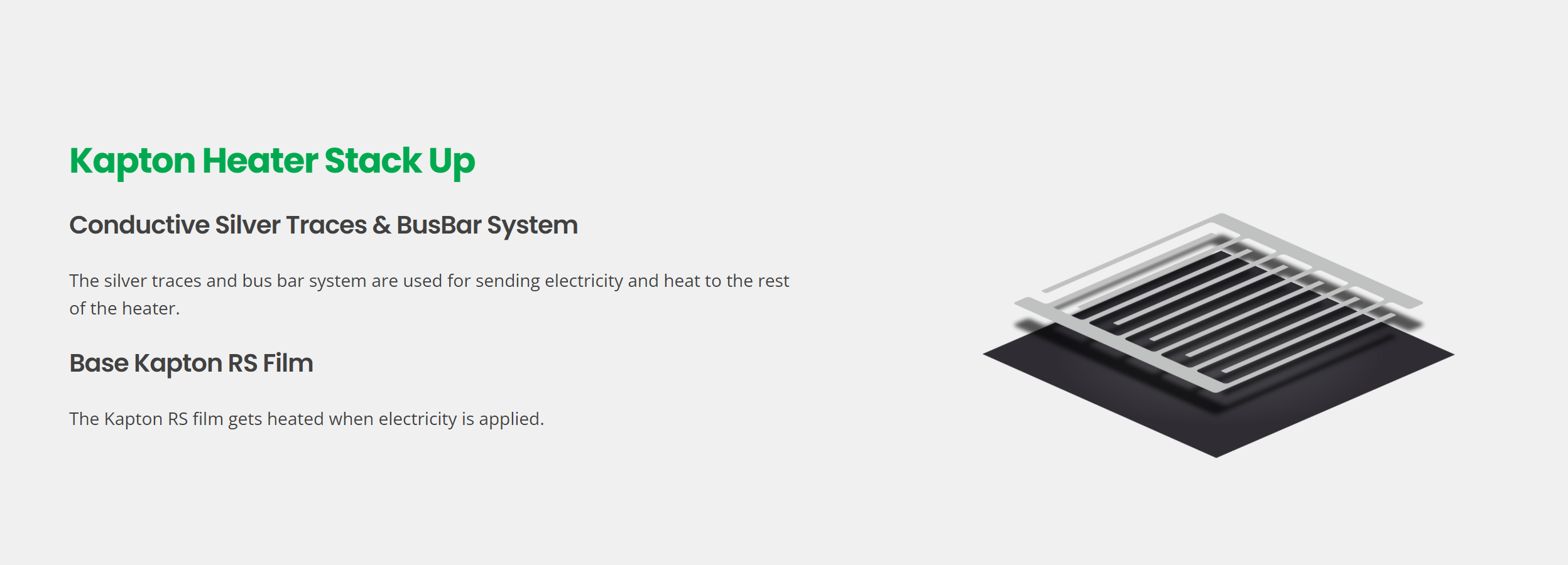

Kapton Heater Stack Up

Conductive Silver Traces & BusBar System

The silver traces and bus bar system are used for sending electricity and heat to the rest of the heater.

Base Kapton RS Film

The Kapton RS film gets heated when electricity is applied.
